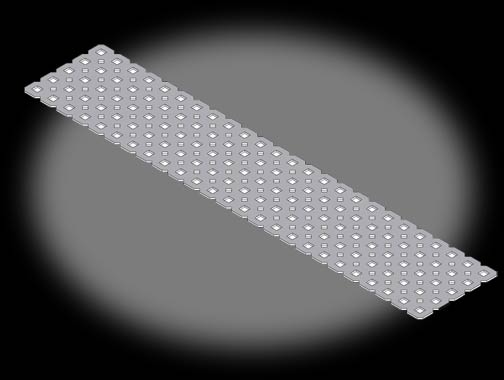

Plate with holes on 0.500" increments and 1/8" diamonds in between. Can be cut on 0.500" increments.
| Technical Specs |
| Material Type | Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength) |
| Material Thickness | 0.046" (1.17mm) |
| Material Finish | Zinc Plated |
| Hole Size | 0.182 square (Vex standard) |
| Weight | 0.327 lbs |
STEP file
