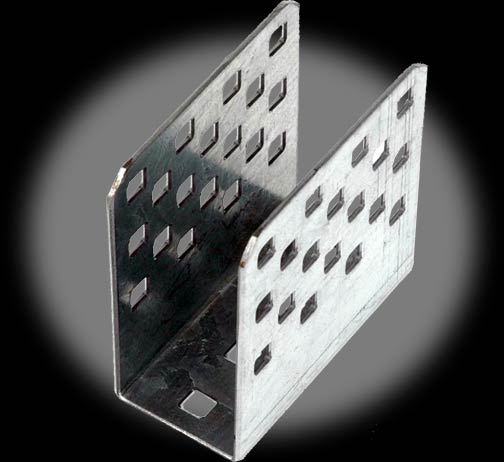

This Bracket is designed with the VEX Rack Gear in mind. An application of this bracket and the rack and pinion gear uses the pinion gear to rotate the rack gear which will in turn slide linearly using the VEX Linear Slide Pack. This allows users to create linear motion. Use additional standard VEX Motion Products (not included) to utilize this bracket with the VEX Rack Gear.
Kit includes two gear brackets. No gears are included.
| Specs |
| Kit Contents | 2 Rack Gearbox Brackets |
| Material Type | Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength) |
| Material Thickness | 0.046in. (1.17mm) |
| Material Finish | Zinc Plated |
| Hole Size | 0.182 square (Vex standard) |
STEP file
