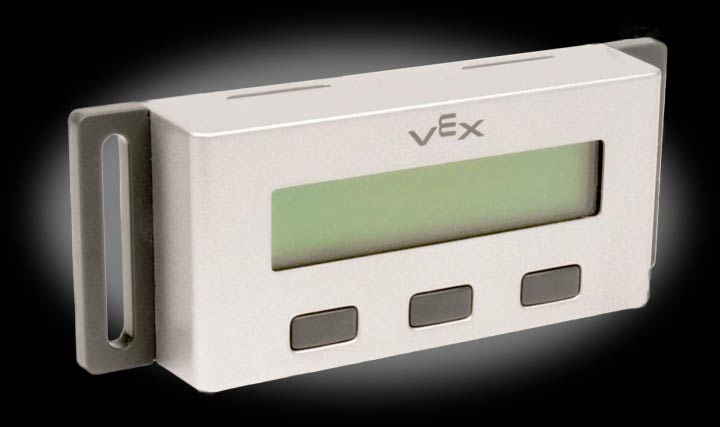

Use the VEX LCD Display to receive real-time feedback from your robot to perform live debugging. View multiple stored program configurations and select between them or provide additional user-input to your robot.

Note: Requires VEX programming software and cables that are both sold separately.

I/O Ports: 1 RX Port & 1 TX Port

Microcontroller Compatibility
PIC Microcontroller V0.5: Requires (2) 3-Wire Extension Cables
Cortex Microcontroller: Requires (1) 4-Wire to dual 3-Wire Cable
Cables are sold separately.

Size
Module: 4.5 x 1.7 x 0.8 in.
Screen: 2.6 x 0.63 in., 16 x 2 Character LCD
Character Size: 0.12 x 0.22 in.
0.158 lbs


Instruction Sheet - LCD Display

Character Reference Sheet

STEP File
