This kit provides larger size chain and sprockets designed for use with the VEX Robotics Design System. These reinforced sprockets and chain can be used just like the VEX Sprocket and Chain Kit but can withstand higher stresses and lift heavier loads. VEX High Strength Chain is the same pitch as VEX Tank Tread. The components from this kit are compatible with all VEX Tank Tread components. Also use included "Attachment Links" to attach structural components to your chain. Use this kit for any application where regular chain just won't cut it!



Features
High Strength Design - up to 50 lbs
12 Sprockets in 5 Sizes
54" of Chain Links



Technical Info
Material Type	Delrin Plastic
Master Links	Every link can act as a master link to make chains of any length
Tensile Strength	Approximately 50 lbs.
Chain Length	140 links = 54in.
Chain Width	Links are 0.57in. wide, attatchment links are 1.5in. wide
Mounting Holes	0.175in. diameter

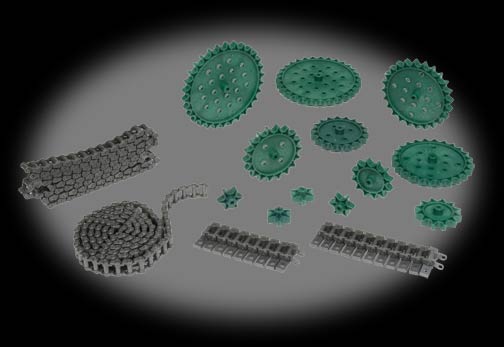

Kit Contents
4	High Strength 6-tooth Sprocket (~0.97in. OD)
2	High Strength 12-tooth Sprocket (~1.69in. OD)
2	High Strength 18-tooth Sprocket (~2.43in. OD)
2	High Strength 24-tooth Sprocket (~3.16in. OD)
2	High Strength 30-tooth Sprocket (~3.90in. OD)
140	High Strength Chain Links
20	Chain Attatchment Links
1	Inventor's Guide Insert




STEP files (includes chain link!)
