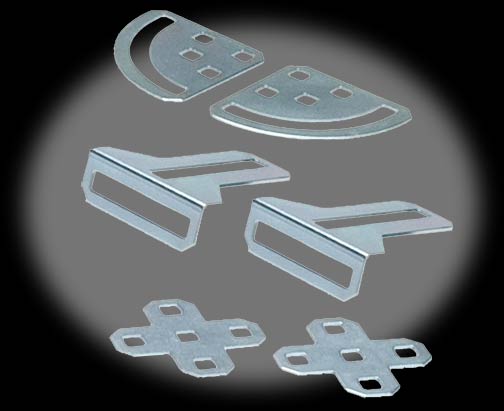

Six gussets in one pack
(2) Angle Gussets
Bent gusset for strengthening "T" joints. Slots on both main flanges allow for adjustment on two axis. Can also be used as a motor mount.
(2) Plus Gussets
Generic gusset for strengthening flat joints. Can be easily cut into a "T" gusset or an "L" gusset.
(2) Pivot Gussets
Bracket allows parts to be connected at any angle from 0 to 90 degrees. Can also be used as a corner gusset.
| Technical Info |
| Metal Type | Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength) |
| Metal Thickness | 0.046" (1.17mm) |
| Finish | Zinc Plated |
| Hole Size | 0.182 square |
STEP files
