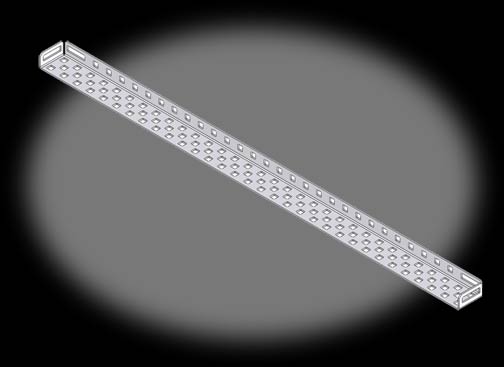

The Chassis Rails are part of the larger VEX Chassis Kits. This rail has holes on 0.500" increments and another row in-between. This part is a versatile angle with one narrow side and one taller side.
| Technical Info |
| Metal Type | Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength) |
| Metal Thickness | 0.046in. |
| Finish | Zinc Plated |
| Hole Size | 0.182 square (VEX standard) |
| Weight | 0.258 lbs |
STEP file
