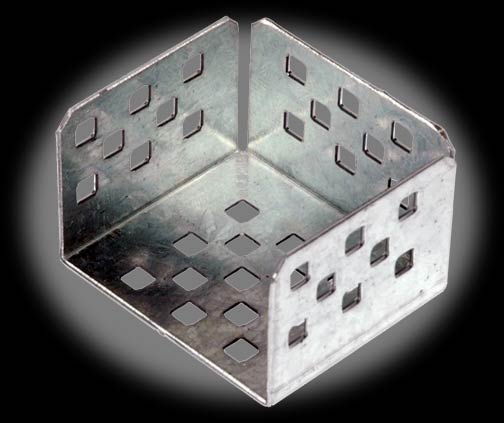

This Bracket is designed with the VEX Bevel Gear. This is the simplest way to mount and utilize the bevel gears.
Kit includes two bevel gear brackets. No gears are included.
| Specs |
| Kit Contents | 2 Bevel Gearbox Brackets |
| Material Type | Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength) |
| Material Thickness | 0.046in. (1.17mm) |
| Material Finish | Zinc Plated |
| Hole Size | 0.182 square (Vex standard) |
STEP file
