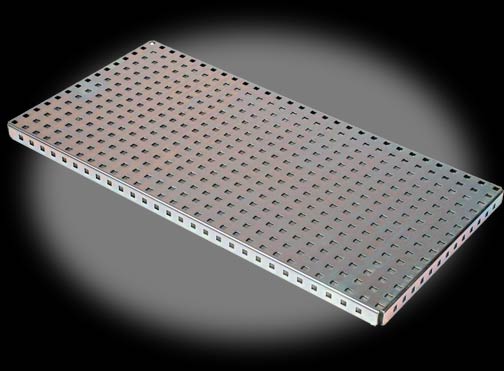

VEX Base Plates are designed to serve as a foundation for a variety of robotics applications. Use them to create a large stationary robotic arm, or interlock them to build larger manufacturing type systems. These pieces can also be used as large structural pieces in other robotic applications.
| Technical Specs |
| Material Type | Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength) |
| Hole Size | 0.182 square (Vex standard) |
| Size | 15-holes Wide x 30-holes Long
7.5 x 15 x 0.546in. |
| Weight | 1.4lbs. each |
Product Drawing
STEP File
