Use VEX Aluminum pieces to lighten the total weight of a robot or mechanism while still keeping it strong.
Features
Compatible with all VEX Motion and Structure components.
Available in bundle kits or in single part multi-packs
| Technical Specs |
| Material Type | Aluminum, 5052H32 |
| Material Thickness | 0.064in (1.6mm) |
| Hole Size | 0.182 square (Vex standard) |

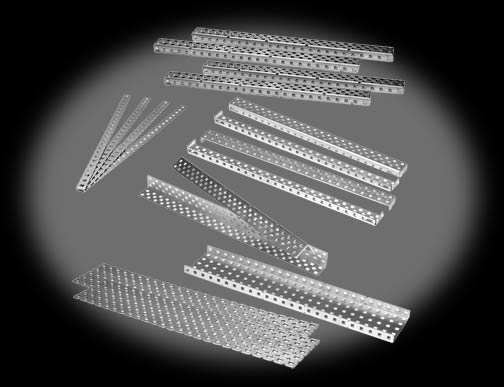

| Kit Contents | (1) Aluminum Chassis 25x25x2
(4) Aluminum C-Channel 1x2x1x25
(1) Aluminum C-Channel 1x5x1x25
(2) Aluminum Plate 5x25
(4) Aluminum Bar 1x25 |
| Weight | Aluminum Plate 5x25: 0.146 lbs
Aluminum Bar 1x25: 0.030 lbs
Aluminum Chassis: 25x25x2: 0.552 lbs
Aluminum C-Channel 1x2x1x25: 0.116 lbs
Aluminum C-Channel 1x5x1x25: 0.211 lbs |
STEP Files and PDFs
