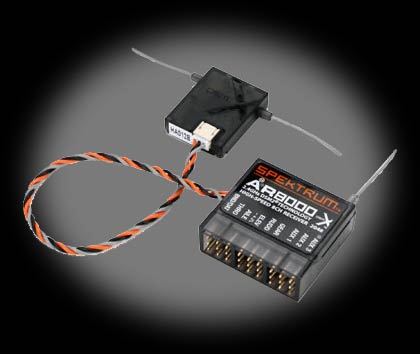

Spektrum is committed to offering receivers to modelers in all categories within the hobby, and the AR8000 is no exception to that commitment. The AR8000 is packed with industry-leading features including an incredibly fast input-to-output response with an 11-millisecond frame rate when used with capable transmitters, 2048 resolution for ultra-smooth servo travel, and a compact footprint making it ideal for any application from extreme 3D to competition helicopter performance.
Features
11 Millisecond Frame Rate provides superior speed from stick input to servo output
2048 resolution provides smooth transition from stick input to servo movement
Flight log and telemetry compatible
| Specs |
| Type | AR8000 DSMX High-Speed 8-Channel Receiver |
| Number of Channels | 8 |
| Modulation | DSM2/DSMX |
| Band | 2.4GHz |
| Length | 1.35 in. (34.3mm) |
| Width | 1.27 in. (32.3mm) |
| Height | 0.45 in. (11.4mm) |
| Weight | 0.33 oz (9.4g) |
| Voltage Range | 3.5-9.6V |
NOTE: All Spektrum AR8000 remote receivers are compatible running DSMX and DSM2, in order to identify those remote receivers please reference the PID number located on the receiver case. All other remote receivers are only compatible with DSM2 systems.
User's Manual
DSMX Addendum
