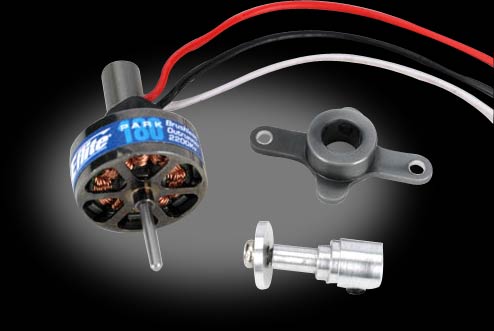

The smallest brushless motor we've come across!

Ideal for 3D models 2-3 ounces, and sport and scale models 3-6 ounces, or models requiring up to 30 watts of power.



Type	Brushless Outrunner
Size	180
Bearins or Brushings	Bearings
Recommended Prop Range	3x3 to 6x3 'Slow Flyer' for 2S or 4x4 to 4.5x3 fo 3S
Voltage	4.8-11.4V
RPM/Volt (Kv)	2200
Resistance	0.91 ohms
Idle Current	0.30A at 8V
Shaft Diameter	1.5mm
Overall Length	20mm
Weight	8.5g (0.30 oz)
Overall Diameter	0.63 in (16mm)
Continuous Current	2.6A
Maximum Burst Current	3.2A for 15 seconds
Cells	2-3S LiPoly or 4-8 NiCad/NiMh
Speed Control	4-6A Brushless


Needed to Complete


4-6A Brushless ESC

2-3S LiPoly or 4-8 NiCad/NiMh

3x3 to 6x3 'Slow Flyer' for 2S or 4x4 to 4.5x3 fo 3S




Instructions
