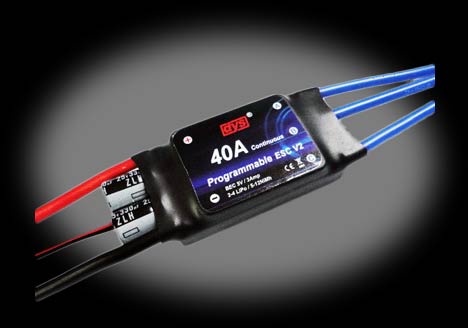

40 Amp ESC
• Compact 40 amp Brushless ESC
• 3 amp BEC
• 40 amps continuous, 50 amps burst
• 1.77" (45mm) x 0.94" (24mm) x 0.35 (9mm)
• 0.95oz (27g) plus 3g bullets
• Handles up to 12.6V
• Programmable LiPo or NiMh cutoff
• Programmable brake
• Low resistance

This ESC is a great match for most motors that draw up to 40 amps. It will handle 19.2V with the BEC disabled, or 12V normally.

Programmable features include
- Brake on or off
- Auto LiPo (2.9V per cell)
- Auto NiMh (60% of start voltage)


Programming Guide
