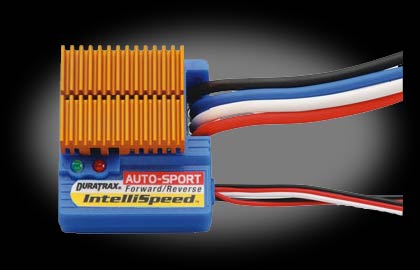

Duratrax Intelli Speed Sport Fwd/Rev ESC

Duratrax Intelli Speed Sport Fwd/Rev ESC
DTXM1059
Item #: 0-DTXM1059
Availability: In Stock
Usually ships In 1-2 Business Days
Retail: $59.99 Price: $29.99
You Save: $30.00 (50.0%)

    There are no reviews yet.
    Write a review
    Quantity:

    There's no end of extra-inexpensive sport ESCs or expensive, state-of-the-art racing controls. But to find great values between these two extremes, you have to look smart - and that makes DuraTrax IntelliSpeeds natural choices for the value-conscious performance racer.

    The new Auto-Sport Forward / Reverse ESC adds reverse, for the perfect upgrade to a sport-level reversible ESC. It's a great value for start-up modelers and stock motors, but can also handle motors down to 18 turns - the type quickly becoming the standard in many start-up RTRs.

    Features
    Simple "Plug In" set up for a quick and easy speed control use
    Digital glitch prevention
    Fully proportional forward and reverse control, with ABS brake
    Automatic set-up from the Tx. No adjustment dials or buttons, with high-visibility Red and Green set-up LEDs
    For stock motors having no fewer than 18 turns. Great for entry level racing
    Anti-lock Brake System (ABS) enables greater control while connering
    Ultra high frequency gives smoother throttle response, cooler running motors, and greater motor life
    Built in ON/OFF switch lets the vehicle be turned ON at the flip of a switch, not as soon as the battery is plugged in
    Futaba J connector installed

    Specs
    Input Power 4.8-8.4V DC (4-7 cells)
    Operating Frequency 1.0 kHz
    BEC5.0V / 1.0 amp
    On-Resistance0.007 ohms
    Maximum Constant Current 128 amps
    Maximum Peak Current 440 amps
    Acceleration Time Delay 0.34 seconds fixed
    Motor Turns Limit No fewer than 18 turns
    Case Size 1.48 x 1.34 x 0.57 in. (42 x 38 x 16 mm)
    Weight2.12 oz. (60g)
