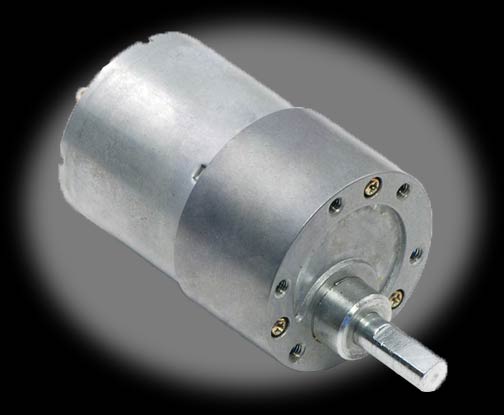

This 2.05" x 1.45" x 1.45" gearmotor is a powerful, high-quality motor with 29:1 metal gearbox intended for operation at 12V. These units have a 0.61"-long, 6 mm-diameter D-shaped output shaft.



These motors are intended for use at 12V, though the motor can begin rotating at voltages as low as 1V.



Gearmotor Dimensions:
The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws. These mounting holes form a regular hexagon and the centers of neighboring holes are 15.5 mm apart.



Specs
Size	37D x 52L mm
Weight	6.7 oz
Shaft Diameter	6 mm
Shaft Length	15.5 mm
Gear Ratio	29:1
Free-run Speed at 6V	175 rpm
Free-run Current at 6V	250 mA
Stall Current at 6V	2500 mA
Stall Torque at 6V	55 oz-in
Free-run Speed at 12V	350 rpm
Free-run Current at 12V	300 mA
Stall Current at 12V	5000 mA
Stall Torque at 12V	110 oz-in



Key specs at 12 V: 350 RPM and 300 mA free-run, 110 oz-in (8 kg-cm) and 5 A stall.
