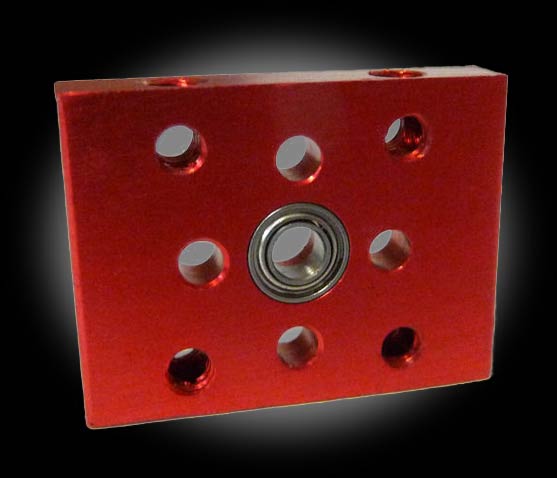

This block can be used as a motor mount for the 16mm gearmotors or as a bearing block for a 3mm shaft. The bearing works will with the Spark Motors by aligning the mounting holes to the Spark mounting holes, and offers additional shaft support.
| Specs |
| Height | 0.75in. (19.1mm) |
| Width | 1in. (25.4mm) |
| Thickness | 0.19in. (4.8mm) |
| Weight | 0.16 oz (4.5g) |
| Tapped Holes | 4-40 |
| Material | Aluminum |
| Bearing Type | Ball Bearing |
| Bearing Outer Diameter | 6mm |
| Bearing Inner Diameter | 3mm |
| Bearing Thickness | 2mm |
Drawing
