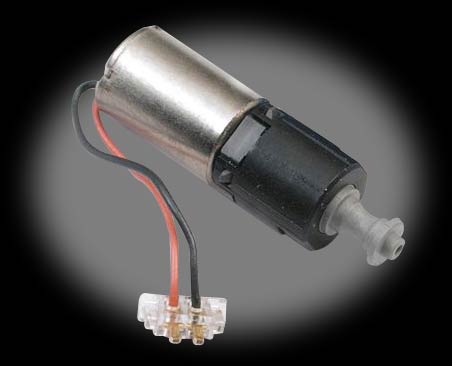

25:1 6mm Planetary Pager Gearmotor

25:1 6mm Planetary Pager Gearmotor
GM15
Item #: 0-GM15
Availability: In Stock
Usually ships In 1-2 Business Days
Price: $9.00


    There are no reviews yet.
    Write a review
    Quantity:

    Looking for a tiny gear motor? Now comes the 25:1 Pager Motor, measuring under 6mm (0.235") diameter, with an overall length of 20.1mm (0.79"), which is smaller than many pager motors! The output shaft is grooved for a 1.5mm radius belt, but it's easily modifiable. It weighs only 1.3grams! It's designed for 3V nominal operation, giving 920RPM drawing 100mA. At stall, you get over 0.49in*oz or 35.28gm*cm of torque! We're quite excited about these motors; they're quality made, inexpensive, and tiny!

    Gear Ratio 25.00:1
    Unloaded RPM (3V) 920
    Unloaded RPM (6V) 1550
    Unloaded Current (3V) 100 mA
    Unloaded Current (6V) 200 mA
    Stall Current (3V) 210 mA
    Stall Current (6V) 350 mA
    Stall Torque (3V) 0.49 in-oz
    Stall Torque (6V) 1.00 in-oz
    Length20.00 mm
    Width6.00 mm
    Height6.00 mm
    Weight1.3 g



    Data Summary

    Dimensions (Imperial)

    Dimensions (Metric)
