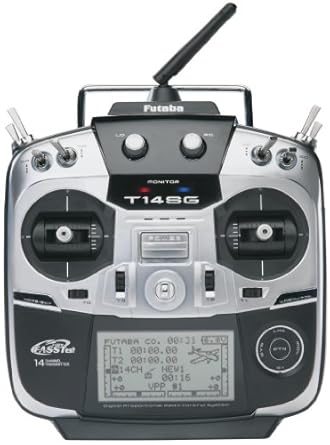

14SGA 2.4G R7008SB AIR TELMTRY

14SGA 2.4G R7008SB AIR TELMTRY
FUTK9410
Item #: 0-FUTK9410
Availability: In Stock
Usually ships In 1-2 Business Days
Retail: $799.99 Price: $488.36
You Save: $311.63 (39.0%)

    There are no reviews yet.
    Write a review
    Quantity:
    This is the Mode 2 version-the left stick controls throttle and rudder and the right stick controls elevator and ailerons This is the airplane version which will default to airplane settings when powered up.

    FEATURES
    2.4GHz FASSTest technology is also compatible with Futaba FASST and S-FHSS protocols, allowing this system to be used with any 2.4GHz air receiver Futaba produces
    Transmits and receives telemetry data with Futaba telemetry sensors (not included, sold separately) to monitor flight data, receive alerts and more
    30 model memory with 10 character model naming and 10 character user naming
    Model data can be saved to an SD card (not included, purchase separately)
    Left and right assignable slider switches
    Two assignable rotary knobs
    Six assignable three-position switches
    One assignable momentary two-position switch
    One assignable two-position switch
    S.BUS2 programmability allows multiple servos, gyros and telemetry
    to be installed with minimum amount of cables
    Programming port and earphone jack
    Airplane Features;
    7 different wing types, 3 different tail types, 2 different rudder types
    Flap setting menu
    Differential ailerons
    Aileron to camber flap mixing, aileron to rudder mixing
    Rudder to aileron mixing and rudder to elevator mixing
    Camber mixing, elevator to camber mixing, camber flap to elevator mixing
    Snap roll, V-tail and airbrake mixing
    Ailevator
    Winglet
    Motor mixing
    Fuel mixture mixing (single and twin)
    Gyro mixing
    Throttle curve (5-point), Pitch curve (5-point)
    Idle down
    Helicopter Features;
    6 swash plate types
    Pitch/throttle curves (5-point)
    Throttle hold
    Swash mix
    Throttle mix
    Pitch to rudder mixing
    Fuel mixture
    Gyro (flybarless support)
    Governor (700-3500 rpm)
    Hover pitch and throttle
    High/low pitch
    Swash AFR
    Swash setting (mixing rate, linkage and speed compensation), swash
    ring (electronic)
    Throttle cut
    Glider Features:
    11 different wing types, 3 different tail types, 2 different rudder
    types
    Flap setting menu
    Differential Ailerons
    Aileron to camber flap mixing
    Aileron to brake flap mixing
    Aileron to rudder and rudder to aileron mixing
    Rudder to elevator mixing
    Camber mixing
    Elevator to camber mixing
    Camber flap to elevator mixing
    Butterfly mixing, butterfly to elevator mixing

    INCLUDES
    Futaba 14SG 14 Channel 2.4GHz Computer Radio System on Mode 2 with
    R7008SB Receiver, 6V 1800mAh NiMH Transmitter Battery, Instruction
    Manual, and LiFe Spacer for optional FT2F2100B/FT2F1700B battery*
    pack, Battery Charger, Neck Strap, and Switch Harness
    REQUIREMENTS
    Servos of modeler's choice

    SPECIFICATIONS
    Transmitter;
    Transmitting Frequency: 2.4GHz band
    System: FASSTest14CH, FASSTest12CH, FASST MULTI, FASST 7CH, S-FHSS
    switchable
    Power Supply: 6.0V HT5F1800B NiMH battery (FUTM1482)
    R7008SB Receiver (FUTL7675);
    Receiving Frequency: 2.4GHz FASSTest system
    Power Requirement: 3.7 - 7.4V (voltage range 3.5 - 8.4V)
    Current drain: 75mA
    Extra Voltage Port: 0 - 70V DC
    Size: 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm)
    Weight: 34.5oz (980g)
